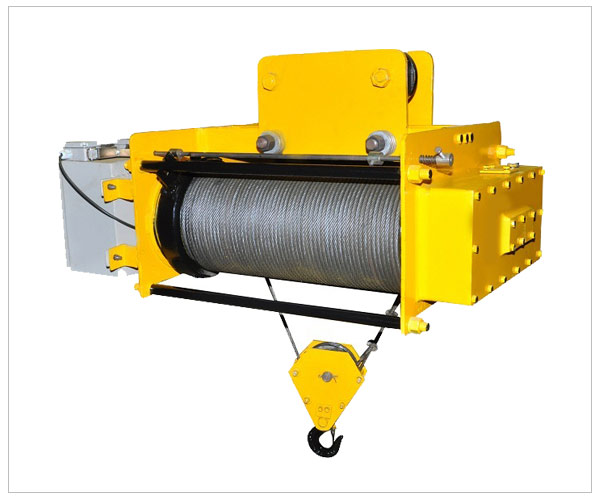

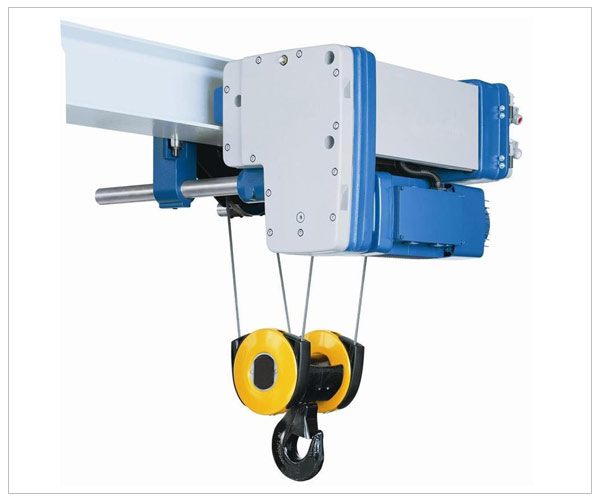

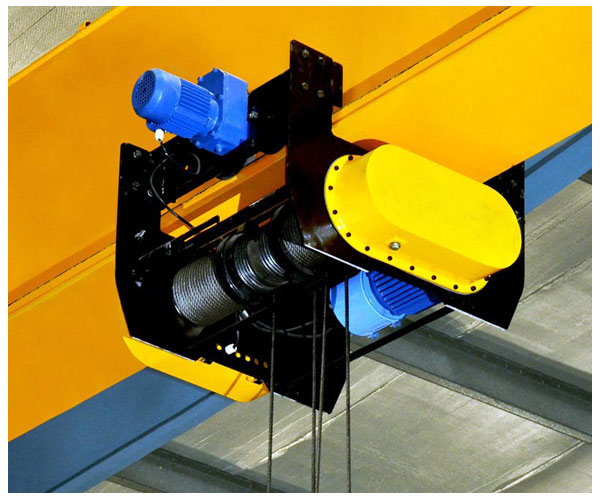

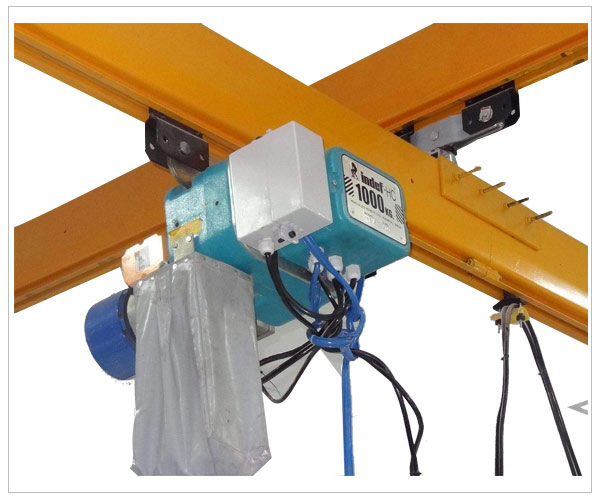

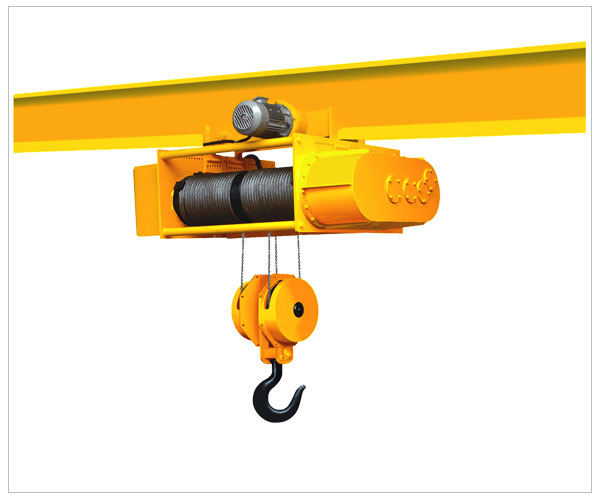

Wire Rope Electric Hoist are designed in accordance with IS-3938-1979. CRANOIST Hoists are designed in modular construction, short headroom, easily accessible for repair & maintenance. Helical/spur type carbon or alloy steel gears are mounted on antifriction ball bearings in oil bath giving positive splash lubrication, Motors are squirrel cage induction confirming to IS-325 Brakes are of ‘fail to safe’ type in case of failure or electric supply, brake acts immediately. Heavy duty steel forged hooked confirming to IS-2266. Pendent push Button station suspended from the hoist with wire rope operating at 110v or 42v which ensures safety to the operator. Brijwasi hoists are compact, robust & elegant in appearance. Jayshree hoists are suitable to the specific requirement of your application.
TECHNICAL DATA |
||||||||||
SAFE WORKING LOAD (KGS) |
500 |
1000 |
2000 |
3000 |
5000 |
10000 |
15000 |
20000 |
||
HEIGHT OF LIFT (MTRS.) |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
||
SPEEDS (MPM) |
HOISTING C.T. |
4 |
4 |
3.5 |
3.5 |
3.5 |
3.0 |
2 |
2 |
|
18 |
18 |
15 |
15 |
15 |
15 |
15 |
15 |
|||
MOTOR (H.P.) |
MOISTING C.T. |
0.5 |
1.25 |
3.0 |
5.0 |
7.5 |
12.5 |
18.0 |
18.0 |
|
0.125 |
0.25 |
0.5 |
0.5 |
1.25 |
1.5 |
2.0 |
2.0 |
|||
FALLS OF ROPE |
2 |
2 |
2 or 4 |
3 |
5 |
5 |
4 or 6 |
4 OR 6 |
||
WEIGHT (KGS.) APROX
|
150 |
180 |
400 |
500 |
550 |
1200 |
1600/2000 |
2000/2500 |
||
DIMENSIONS : |
A |
425 |
450 |
600/650 |
750 |
900 |
1500 |
1650 |
1850 |
|
B |
180 |
180 |
200 |
200 |
200 |
250 |
300 |
325 |
||
C |
460 |
460 |
690 |
690 |
690 |
950 |
1100 |
1150 |
||
D |
700 |
700 |
1050 |
1100 |
1100 |
1700 |
1850 |
2000 |
||
E |
300 |
300 |
500 |
500 |
500 |
620 |
750 |
750 |
||
F |
400 |
400 |
500/540 |
545 |
545 |
690 |
900/700 |
900/700s |
||
